Description
Single-meter CNG flow meters meet the challenges of measuring compressed natural gas for custody transfer in light and heavy-duty vehicle dispensers while reducing fill time with higher flow rate capability. Gas Accuracy / Repeatability: ±0.50% of batch ( ±0.25% of rate) Line Size: 1/2” – 3/4” (DN15 – DN20) Pressure Range: 5000 psig (345 barg) Temperature Range: -40 to 257 F ( - 40 to 125 C) Turndown: 10:1
Rosemount

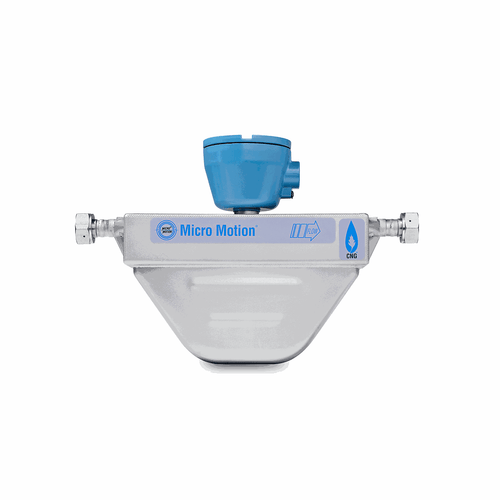

Micro Motion CNG Coriolis Flow Meter Consisting of CNG050S Sensor and 1700 Transmitter
Batch accuracy: ±0.50% of rate Repeatability: ±0.25% of rate Sensor maximum working pressure: 5,000 psig (345 barg) Meter approvals, calibrations, and certifications: • CSA• IECEx• NEPSI• ATEX...
Rosemount
Micro Motion CNG Coriolis Flow Meter Consisting of CNG050S Sensor and 1500 Transmitter
Batch accuracy: ±0.50% of rate Repeatability: ±0.25% of rate Sensor maximum working pressure: 5,000 psig (345 barg) Meter approvals, calibrations, and certifications: • CSA• IECEx• NEPSI• ATEX...
Rosemount
Micro Motion CNG Coriolis Flow Meter Consisting of CNG050S Sensor and 2500 Transmitter
Batch accuracy: ±0.50% of rate Repeatability: ±0.25% of rate Sensor maximum working pressure: 5,000 psig (345 barg) Meter approvals, calibrations, and certifications: • CSA• IECEx• NEPSI• ATEX...
Rosemount
Micro Motion CNG Coriolis Flow Meter Consisting of CNG050S Sensor and 2700 Transmitter
Batch accuracy: ±0.50% of rate Repeatability: ±0.25% of rate Sensor maximum working pressure: 5,000 psig (345 barg) Meter approvals, calibrations, and certifications: • CSA• IECEx• NEPSI• ATEX...
Rosemount
Micro Motion High Pressure Coriolis Flow Meter
The ideal solution for challenging high-pressure processes, the High-Pressure Coriolis Flow Meter works well in applications such as chemical injection on offshore platforms. Accurate, repeatable...
