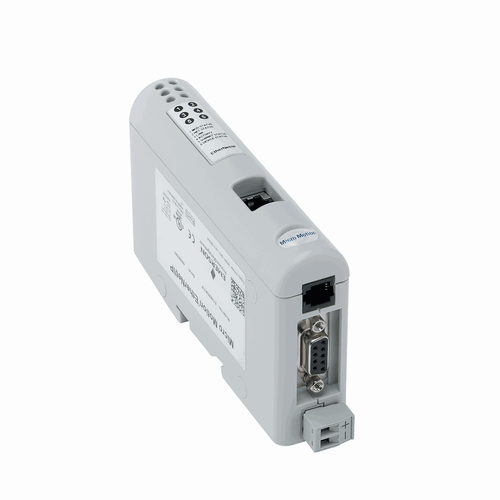

Micro Motion EtherNet/IP Module for Coriolis Flow Meters
- Brand
- Rosemount
- SKU:
- micro-motion-ethernet-coriolis
Description
Get multivariable outputs and a powerful configuration and maintenance interface in a convenient, easy-to-install package. This smart module provides fast access to flow, density, temperature and many other parameters. Housing: Plastic housing with snap-on connection to DIN rail Protection class: IP20 Dimensions: 4.72” × 2.95” × 1.06” L×W×H (120mm × 75mm × 27mm) Power SupplyPower Consumption: 24 V ±10%Maximum 280 mA on 24 VTypical100 mA Connections and Protocol: PLC to EtherNet/IP Module EtherNet/IPAlert notification Modus RTU (8-bit) over RS-485Ethernet Config Tool (PC) to EtherNet/IP EtherNet/IP: Standard Cable (not included) Standard connector (not included)Standard Cable (not included) Standard connector (not included)Module Serial Custom cable (included) Environmental: Temperature Operating 32°F to 131°F (0°C to 55°C)Ambient –13°F to +185°F (–25 °C to +85 °C) Regulatory Compliance: 89/336/EEC, amendments 92/31/EEC and 93/68/EECEN 50082-2 (1993)EN 55011 (1990) Class AEN 61000 Galvanic Isolation on Modbus serial interface: EN 60950-1 (2001) Pollution Degree 2Material Group IIIb 32 °F to 131 °F (0 °C to 55 °C)250 VRMS or 250 VDC Working voltage500 V Secondary circuit transient rating
