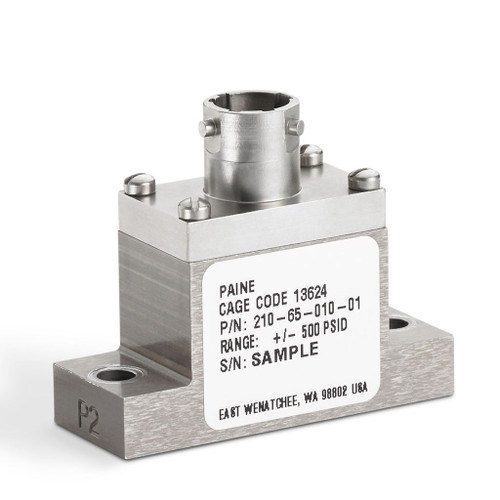

Paine™ 210-65-010 Differential Pressure Transducer
- Brand
- Rosemount
- SKU:
- paine-210-65-010-compensated-dp-transducer
Description
The Paine™ 210-65-010 Differential Pressure Transducer is engineered to provide differential measurements in fire-resistant Skydrol® aviation hydraulic fluid applications. This transducer comes with two separate sensing elements to measure differential pressure at the input ports. Shock and vibration resistant, this device produces highly accurate measurements in harsh and demanding conditions. Measurement Range: Up to 5000 psid (344 bar) Operating Temperature: 0 °F to 250 °F (-17 °C to 121 °C) Process Media: Skydrol® Pressure Port/Fitting: Manifold mounting per MIL-G-5514, Type II, Class 2 O-rings (2) MS28775-008 are supplied with each transducer
