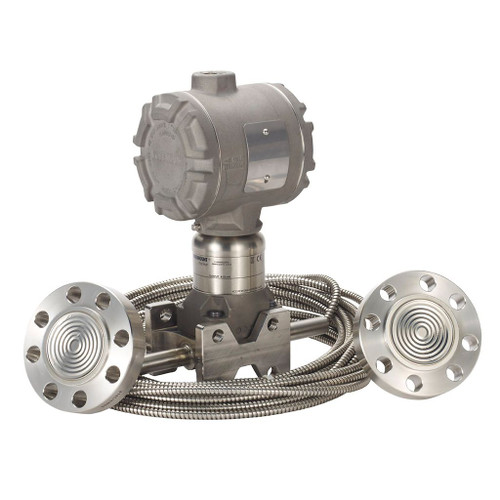

Rosemount™ 3159 Nuclear Qualified Remote Diaphragm Seal

Engineered for use with the Rosemount 3150 Series of nuclear pressure transmitters, Rosemount 3159 Nuclear Qualified Remote Diaphragm Seals are designed to isolate the transmitter from harsh process conditions. These seals are factory-assembled and tested to ensure maximum performance for control, monitoring and safety applications. This product is qualified per IEEE Std 323™-1974/1983/2003 and IEEE Std 344™-1975/1987/2004 and its durable design withstands mild and harsh environments. Output Signal: See relevant transmitter specification Rangedown: See relevant transmitter specification Measurement Range: Up to 13.79 MPa (2000 psi) differential, Up to 27.58 MPa (4000 psig) gage, Up to 27.58 MPa (4000 psig) absolute Housing Material: 316L SST Process Wetted Material: 316L SST Seismic Rating: 8.5g ZPA Seismic Radiation Rating: 112 Mrad (1.12 MGy) TID Gamma Radiation Steam/Pressure Temperature: 435°F (224.0°C) Steam/Temperature Qualification Standard: IEEE Std 323™-1974/1983/2003IEEE Std 344™-1975/1987/2004 Product Literature: The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any. Contact Information: Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5200 or[email protected]for the most current information available
