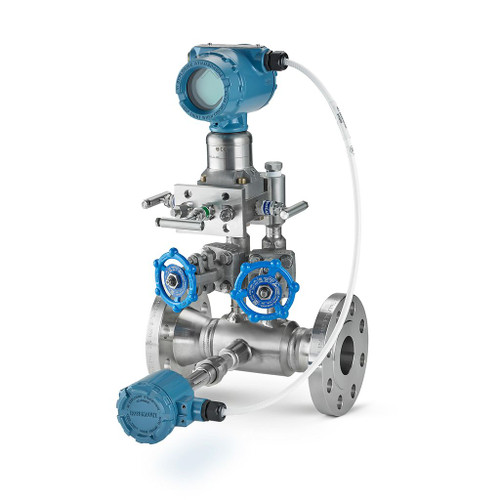

Rosemount™ 9295 Process Flow Meter

The Rosemount 9295 Process Flow Meter offers exceptional performance in a complete integrated package. Engineered for ease-of-use, the 9295 incorporates proven Conditioning Orifice Technology to eliminate straight run requirements while the roddable impulse lines allow blockages to be removed without process shutdown. In addition, optional temperature measurement reduces installation cost and allows for fully compensated flow measurement. Line Size: 2 to 6 in (50 to 150 mm) Discharge Coefficient Uncertainty: Calibrated: ±0.3 to 0.5%; Standard: ±0.75 to 1.5% Flow Turndown: 10:1 or better Max. Operating Pressure: ASME/ANSI B16.5 900# Process Temperature Range: -20 to 850 °F (-29 to 454°C ) Process Media: Liquid, Gas, Steam Process Wetted Material: 316 SST, Carbon Steel Warranty: 5-year limited warranty
